Product Specifications

• Part Number:    11236VS
• Power Source:    corded-electric
• Item Package Quantity:    1

Item Dimensions

• Length:    5.50 inches
• Width:    16 inches
• Height:    20 inches

Technical Details

• 1-1/8-inch rotary hammer; variable speed (0-3,900 beats per minute); tool-free bit changes
• Multi-function selector includes 3 modes of operation--rotation only, rotary hammer, and hammer-only mode
• Double-insulated, OSHA-compliant hard plastic construction
• Includes hammer, handle, depth gauge, case
• 14-1/4-inches long; 9.3 pounds

Product Details

• Product Dimensions: 5.5 x 16 x 20 inches
• Shipping Weight: 9.3 pounds
• Item model number: 11236VS

Product Description

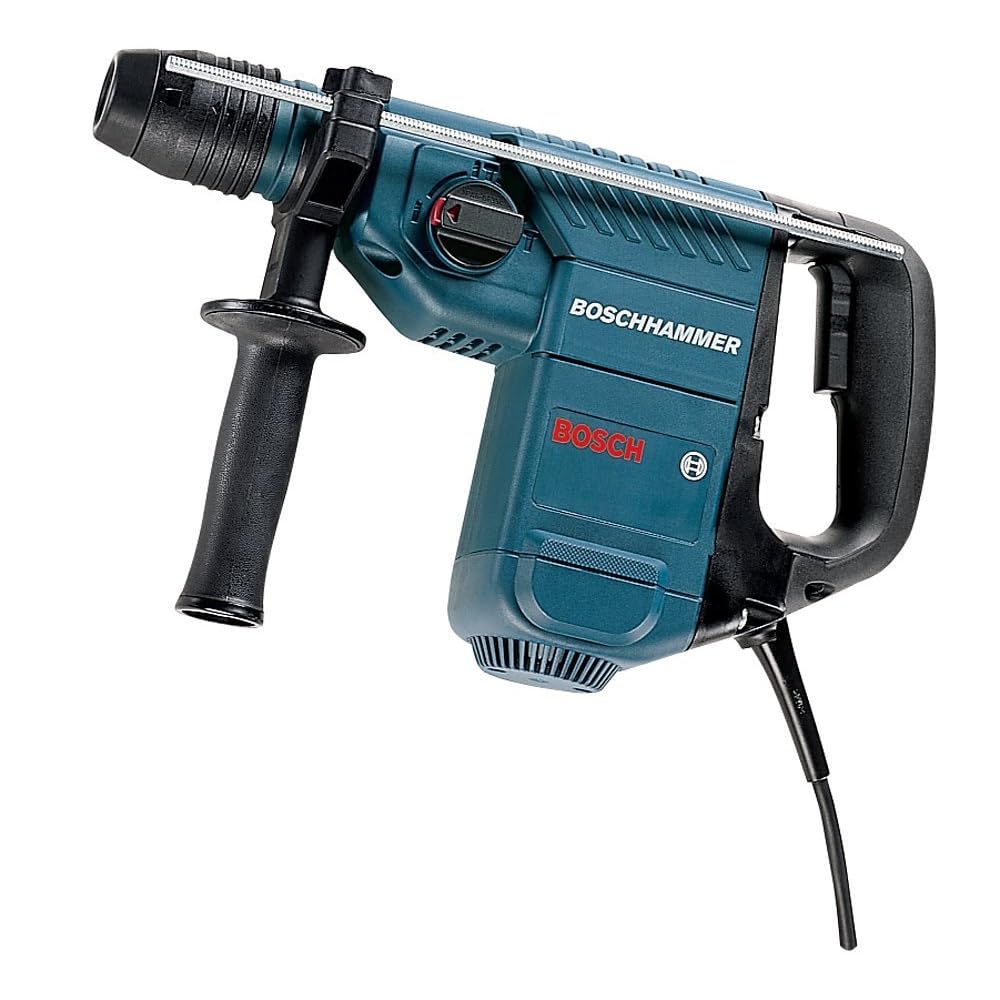

The Bosch 11236VS 7.5 amp hammer runs on a variable-speed 0 to 850 rpm motor with 0 to 3,900 beats per minute. The hammer's Vario-Lock positioning enables the user to rotate and lock the chisel into 36 different positions to optimize the working angle. The unit features three operational modes for versatility: hammer only, for light chipping applications with chisels; rotation only, for drilling wood, steel, and building materials with optional chuck; and hammer/rotation, for drilling concrete, brick, stone, and masonry. The tool's maximum capacities are 1-1/8 inches in concrete, 1/2 inch in steel, 1-1/4 inches in wood, and 4 inches in thin-wall core bit. Includes 360-degree auxiliary handle, depth gauge, and carrying case.

Features

• SDS-Plus bit system offers tool-free bit changes with automatic bit locking, dust protection, and maximum impact-energy transfer rate
• Multifunction selector offers 3 modes of operation: rotation-only, rotary hammer, and hammer-only mode
• Variable-speed 3-finger trigger delivers better operator control and accurate bit starting
• Vario-Lock positioning rotates and locks chisel into 36 different positions to optimize working angle
• Padded rear handle absorbs shock for operator comfort
• 360-degree auxiliary handle with built-in depth gauge delivers wide range of movement, along with consistent drilling depth
• Integral clutch helps minimize torque reaction
• Double-insulated, UL-listed, complies to OSHA

Specifications

• Rating: 120 volts AC
• Amps: 7.5 amps
• No-load speed: 0 to 850 rpm
• No-load beats per minute: 0 to 3,900 bpm
• Impact energy: 2.6 ft./lbs.
• Max hole diameter in concrete: 1-1/8 inches
• Max hole diameter in concrete (thin-wall core bit): 3 inches
• Max hole diameter in wood: 1-1/4 inches
• Optimal concrete capacity range: 1/4 to 7/8 inch
• Length: 15-1/4 inches
• Weight: 9.3 lbs.

Includes

• Auxiliary handle
• Depth gauge
• Carrying case
